URCO210RC

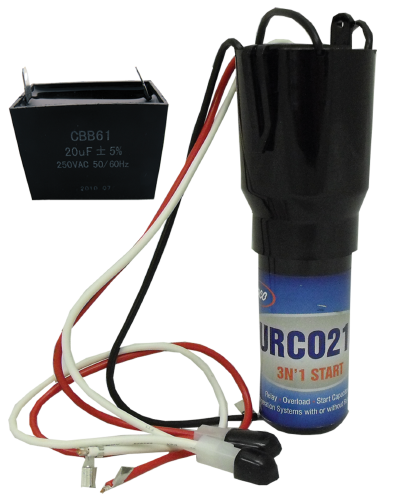

URCO210RC--4'N 1 HARD START 1/3+ -1/2 HP
110 to 125 VAC Solid-state Hardstart Relay, includes relay, overload, start and run capacitor. Used on refrigeration systems without run capacitors. Rated for 1/3 HP to 1/2 HP compressors. Maximum RLA 13.3 Amps. This kit includes a new run capacitor.
Features/Benefits
- Designed for modern high efficiency compressors
- Easy mount clip for quick installation
- Helps older compressors start and run cooler
- Ideal solution for replacing all four components in a system with a run capacitor
- Prevents low voltage starting problems
- Wire Designations - White/Start, Black/Common, Red/Run
- WARNING: Prop 65 info
| Mounting: | Push-on |
| HP rating: | 1/3 - 1/2 hp |
| Voltage (VAC): | 115 |
| Run capacitor: | 20 uF |
| Maximum Continuous RLA: | 13.3A |
| Capacitance: | 243 to 292 MFD |
| Replaces current type relays |
| Works on "RSIR", "CSIR", "PSC" and "CSR" compressors |
| Light commercial refrigeration compressors to 1/2 hp |
| Domestic refrigerator compressors to 1/2 hp |
| SDS | Product Sheets | Cross Reference Information |
| no entry | URCO210RC_prd_001.pdf URCO210RC_prd_002.pdf |
no entry |
| Manuals | Application Sheets | Software |
| no entry | no entry | no entry |
No Cross Reference Available
No Accessories Available
| What size 3 in 1 should I choose?: | Sizing is based on the HP rating of the compressor, and the continuous running amperage. |
